2014-2010 SVT RAPTOR SUPERCHARGERS (6.2, 5.4 3V)
FIRST TO MARKET, COMPLETE AIR-TO-AIR INTERCOOLED SUPERCHARGER SYSTEM
The ProCharger answer for you is a highly engineered intercooled supercharger system that will install on your F-150 in a matter of hours. With systems including:
• HO system (6.2L) producing 7-8 psi of boost, 50%+ HP
• Stage ll (6.2L) system producing 7-8 psi of boost, 50%+ HP
• D-1SC standard with HO (6.2L) system
• HO system (5.4L) producing 8-9 psi of boost, 60%+ HP
• P-1SC-1 standard with Stage ll (6.2L) system and HO (5.4L) system
• Complete turnkey systems
• 100% reversible, no permanent modifications
• Quick and easy installation
• 3-core intercooler
• Kit & finish options tailored to you
WHY CHOOSE PROCHARGER
• 30 Years of Innovation
• Largest Power Gains
• Coolest Charge Air Temps
• Street Legal Systems
• Most Wins and Championships
• OEM Quality and Appearance
• Best Service & Product Support
• Most Kits Ship Within 2-3 Days
• Made in America
CHOOSE THE SYSTEM BEST FOR YOU
HIGH OUTPUT SYSTEM
• ProCharger D-1SC-1 self-contained head unit (P-1SC-1 for 5.4L)
• 1-year warranty, 3-year optional

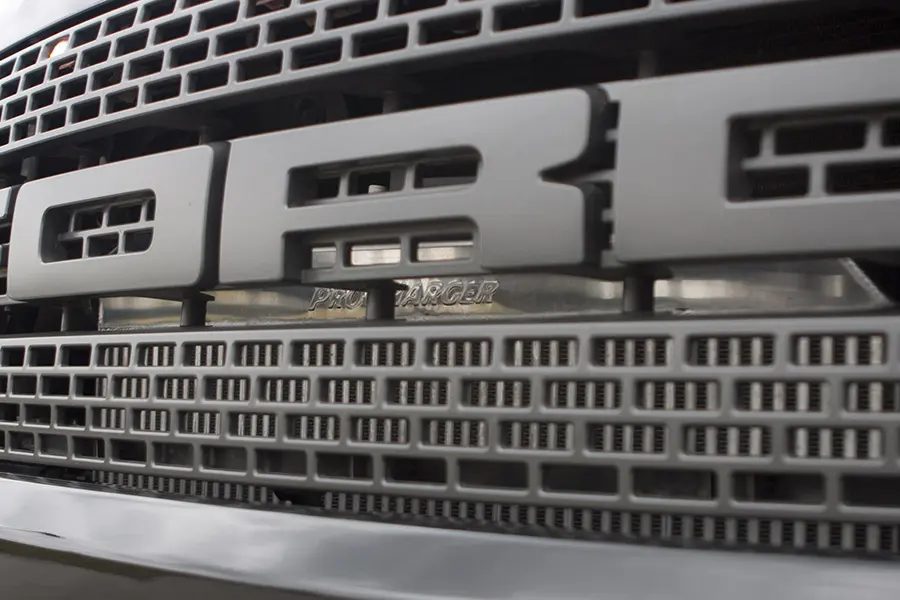

• 3-core air-to-air intercooler
• 6-rib shared drive system
• System is 100% complete with OEM appearances and quality
• ProFlow blow-off valve
• Includes tuning and handheld programmer
• Part # for (6.2L): 1FS311-SCI-6.2
• Part # for (5.4L): 1FS211-SCI-5.4
OPTIONS

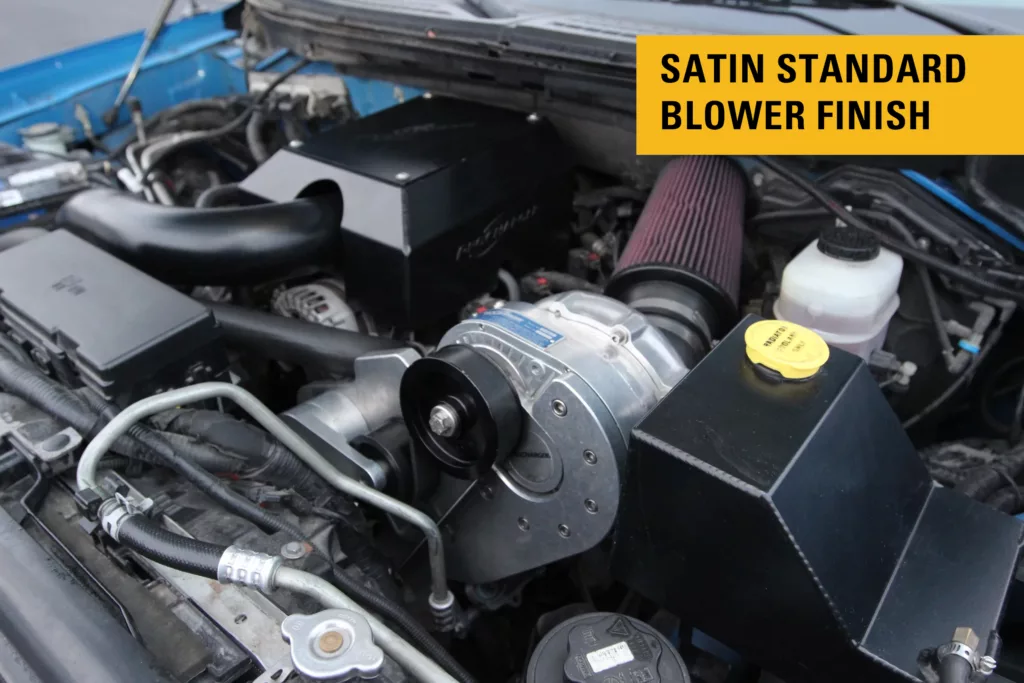

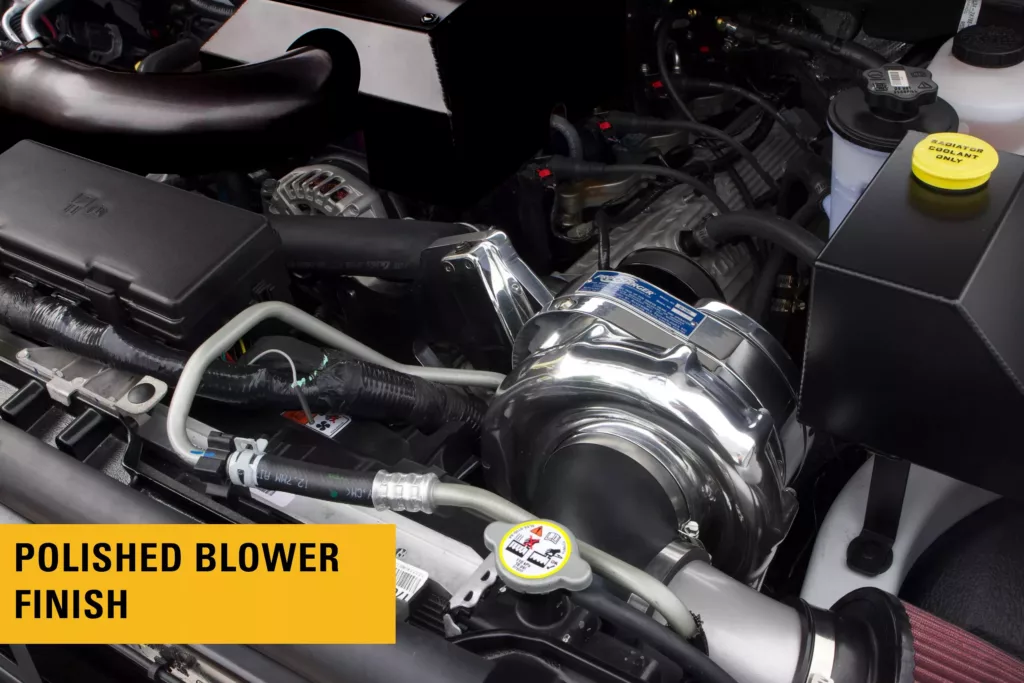

• Black or Polished finish for supercharger
• Black or Polished finish for supercharger bracket
• Helical gearset for noise reduction (P-1SC-1, P-1X, D-1SC, D-1X)
• D-1SC upgrade from P-1SC-1
• D-1X upgrade (Tuner kit only)
• Air-to-air race intercooler
STAGE II SYSTEM
• 8-rib dedicated drive bracket system is standard
• ProCharger P-1SC-1 self-contained head unit
• Larger Race air-to-air intercooler with 4.5″ thick core
• Otherwise identical to HO system
• Part #: 1FS211-SCI-6.2
OPTIONS
• Identical to HO system
HAVE AN EXHAUST OR HEADERS? MODS? GET A TUNER KIT!
Tuner Kits: These kits make sense for someone wanting to perform custom tuning of the car and push the envelope in performance. Will most likely be experimenting with alternative fuels such as 93 octane, race fuel, E85 fuel, and methanol supplemental fuel. In addition, possibly changing engine components like heads, headers, exhaust, and cams for the engine. No tuning or fuel components provided.
- HO Tuner Kit (6.2L) – P/N 1FS301-SCI-6.2
- Stage ll Tuner Kit (6.2L) – P/N 1FS201-SCI-6.2
- HO Tuner Kit (5.4L) – P/N 1FS201-SCI-5.4
P-1X/D-1X UPGRADE
The ProCharger P-1X and D-1X head units feature the robust, self-contained gearcase that is standard on most ProCharger models, but with a new aerodynamic compressor design that creates cooler charge air temperatures and more horsepower at the same boost level than our industry-standard P-1SC-1 and D-1SC. This higher efficiency design was engineered to be a bolt-in replacement for P-1SC-1 and D-1SC equipped systems and has even greater max-power potential.
i-1 UPGRADE
The ProCharger i-1 programmable supercharger produces not only the largest power gains, but also the ultimate performance curve. With an intelligent control system and an optional touch screen display, drivers can switch between 3 factory supplied performance modes, as well as a custom mode. Personalized display screens and data logging are also available. Building on the benefits of centrifugal design, the i-1 delivers higher compressor efficiency than screw blowers, utilizes the most effective intercooling, and avoids the heat transfer associated with engine-top mounting or an exhaust interface.
FEATURED BUILDS
?version=3&mute=1&autoplay=1&loop=1&playlist=" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>
GET YOUR PROCHARGER POWER TODAY!
BUILD & PRICE
Kits starting at $7,049. Pricing on these units vary by configuration. Configure your purchase now.
FIND A DEALER NEAR YOU
Looking to make a purchase or a shop to install? We have a large group of dealers ready to serve you with your ProCharger needs. Click below to find a dealer near you!
ABOUT STREET LEGAL SUPERCHARGER SYSTEMS
If you live in a state with emissions regulations and your build is for street use, then you need a street legal system. Specific to the 2010-2014 SVT Raptor, ProCharger offers two street legal system option for you – an HO and a Stage ll system. All our street legal systems have an associated CARB EO# for compliance. For a full list of California and 50-state street legal systems, click below.
Tuner kits for this vehicle are NOT legal for street use in California. These products are intended for racing or off road applications only.
SPEAK TO AN EXPERT
Click to call our sales staff or email us if you need any help. We will be happy to assist you with any questions you may have.
Mon – Fri 8am – 5:30pm CST
Phone – (913) 338-2886
Sales Email – [email protected]
INSTALLATION MANUAL
Get a Catalog
Our catalogs feature much of this detail. You can either download a copy or have one mailed to you free of charge.
CALIFORNIA EMISSIONS COMPLIANCE INFO (CARB)
California approved products for street legal use (complete systems) will have an associated CARB EO# for compliance. For a full list of California and 50 state street legal systems, click below.
MORE ABOUT PROCHARGING FORD VEHICLES
EMISSIONS COMPLIANCE
ProCharger offers Executive Orders for Emissions Compliance (EO) from California Air Resources Board (CARB) for many of our most popular car, truck and SUV applications. If you live in California, we can only sell you products with EO certification. Check out our full list of EO offerings.
